Design study for a set of paring chisels. I am currently working on ways to produce my tools in larger quantities, in order to keep up with the demand. Also I am trying to build up a small stock to prevent long lead times. The new miling machine and the new surface grinder open up lots of possibilities but the whole plan still need a lot of thought. Making good and correct engineering drawings is an important part of this progress. I am currently designing a set of paring chisels in Autodesk Inventor. Real life prototypes will follow soon! Stay tuned!

www.wilcoflier.com

NEW: marking knife prototype. I have made this handle years ago, maybe even 10 years ago and it's been laying around since then. I always liked how the design turned out and that's probably why I kept it around. Now, with the intention to expand the tool making more and more, it's time to put this to work. The plan is to make a few more knives to tweak the design. Once that is al done, they will be available for sale as a kit or custom made!

www.wilcoflier.com

www.wilcoflier.com

www.wilcoflier.com

www.wilcoflier.com

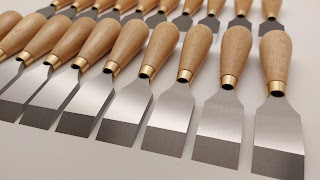

Custom made Kumiko Chisels



20 custom made Kumiko chisels! I finished them just before the holidays. The chisels are made from beechwood, O1 tool steel with brass ferrules. The cutting edge is ground to a steep 20 degree angle for superiour cutting properties for small delicate work. Overal dimensions are:

Blade thickness: 6mm (1/4")
Blade length: 70mm (2 3/4")
Blade width: 30mm (1 1/8")
Handle lengte: 90mm (3 1/2")
Blade material: O1 tool steel (1.2510)
Handle material: Beech

www.wilcoflier.com

www.wilcoflier.com

www.wilcoflier.com

www.wilcoflier.com

www.wilcoflier.com

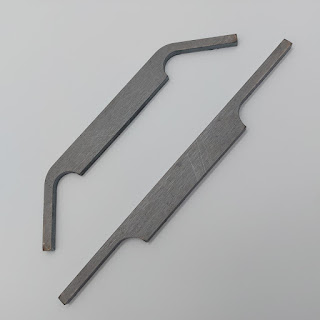

COMING SOON: Small drawknives, with angled handles or straight handles. Ideal for spoon carvers, bow makers, green wood workers and also very useful for other, general woodworking jobs. The width of the edge is 100mm (4"), the blade is 20mmx5mm (3/4" x 6/32") and is laser cut from O1 tool steel. Handles will be made to customer requirements, in different wood types. Everything is possible ;-) Stay tuned!

Wilco Flier Toolworks

                                                              Wilco Flier Toolworks

     Wilco Flier Toolworks

                                                              Wilco Flier Toolworks

                                                              Wilco Flier Toolworks

A very colorfull combination! A bench chisel and a "stubby" or butt chisel. The handle of the bench chisel is made of regular Padouk wood. However, the handle of the butt chisel is made of blue colored, resin infused maple wood. The red an blue of the handles gives a nice contrast with the yellow brass ferules. The handles have the typical, tear drop shape which is my signature handle shape. Sets of 4 chisels in different widths will soon be available for sale! Stay tuned!

www.wilcoflier.com

Custom made fishtail chisel. O1 steel, 9mm (3/8") width, brass ferrule with hand turned handle. Overall length: 195mm (7,5"), blade length 75mm (3"). The hand turned handle is made of lead wood, a very dense and hard tropical hard wood.

https://www.wilcoflier.com/

Last week I finished this set of custom made paring chisel. The blade lengths are 180mm (7"), 25mm (1"), 20mm (3/4") and 12mm (1/2") wide with a 120mm (4") long handle. The hand turned chisels are made from yew wood, with a brass ferule. The steel part is made from O1 tool steel.
